Code: SAR17576K

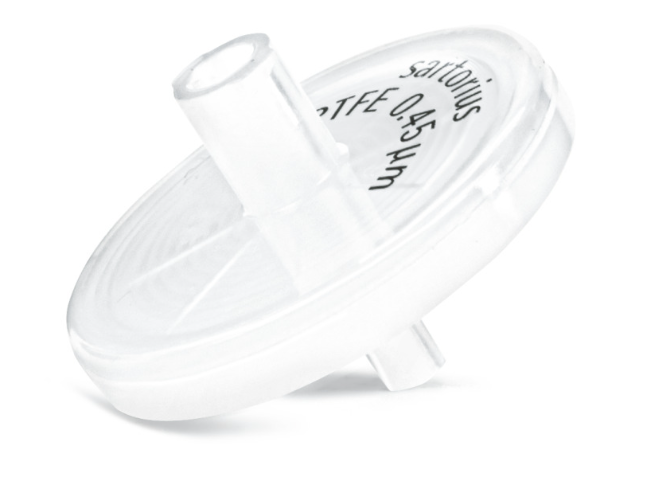

Minisart SRP with chemically inert hydrophobic PTFE is suitable for venting as well as harsh solvents with a pH of 1 - 14. Type 17576 with a pore size of 0.45 µm can be used for sample preparation. It has a male luer slip outlet. Version K is a non-sterile pack of 50. Units can be sterilized by autoclaving or EO.
per Each
Loading... QtyAdd to Cart
Applications
- Application: Ultracleaning of air and gases, Particle Removal
- Application Area: Analytical Sample Preparation
Compliance Information
- Extractables: HPLC certified
Connections (Physical)
- Connector Inlet: Female Luer Lock
- Connector Outlet: Male Luer Slip
Dimensions
- Filter Diameter: ⌀ 25 mm
- Filtration Area: 4.8 cm²
General Specifications
- Filter Paper / Membrane Color: White (opaque), Printed
- Flow Rate: ≥ 260 mL/min for methanol at 1 bar (14.5 psi) | ≥ 3000 mL/min for air at 0.1 bar (1.5 psi)
- Total Throughput: Up to 100 mL
- pH Range: 1.0 – 14.0
Materials of Construction
- Housing Material: Polypropylene (PP)
- Membrane Material: Polytetrafluorethylene (PTFE)
Operating Conditions
- Maximum Operating Temperature: 60 °C (140 °F)
- Operating Pressure: 4.5 bar (65 psi)
- Maximum Operating Pressure: 4.5 bar (65 psi)
Physicochemical Information
- Pore Size: 0.45 µm
- Bubble Point: ≥ 0.9 bar (13 psi) with ethanol
- Burst Pressure: ≥ 7.0 bar (102 psi)
- Wettability: Hydrophobic
Product Information
- Brand: Minisart® SRP
- Device Type: Syringe Filters
- Pack Size: 50
- Packaging: Bulk packed
- Sample Type: Solvents, Air/Gas, Acids, Bases
Sterility / Purity
- Delivery Condition: Non-Sterile
- Sterilization Method: Ethylene oxide, Autoclave
Volume
- Hold-up Volume: ≤ 100 – 200 µL
